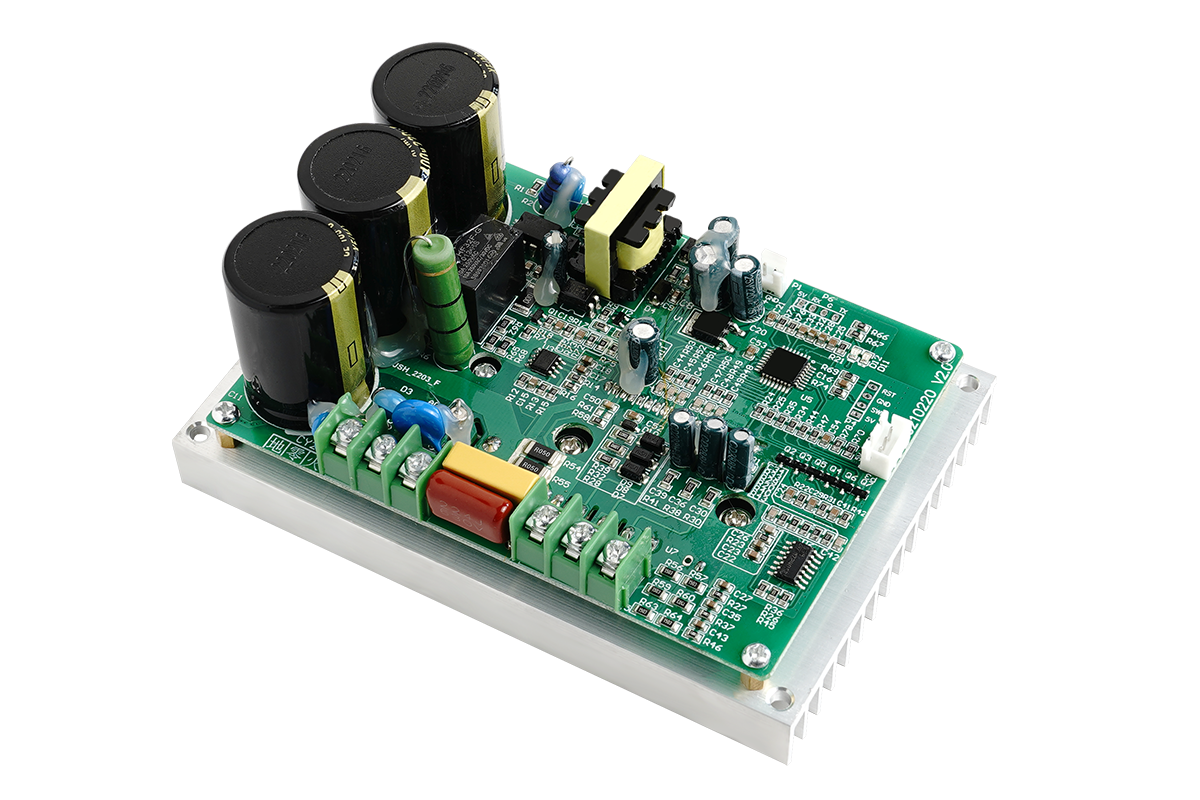

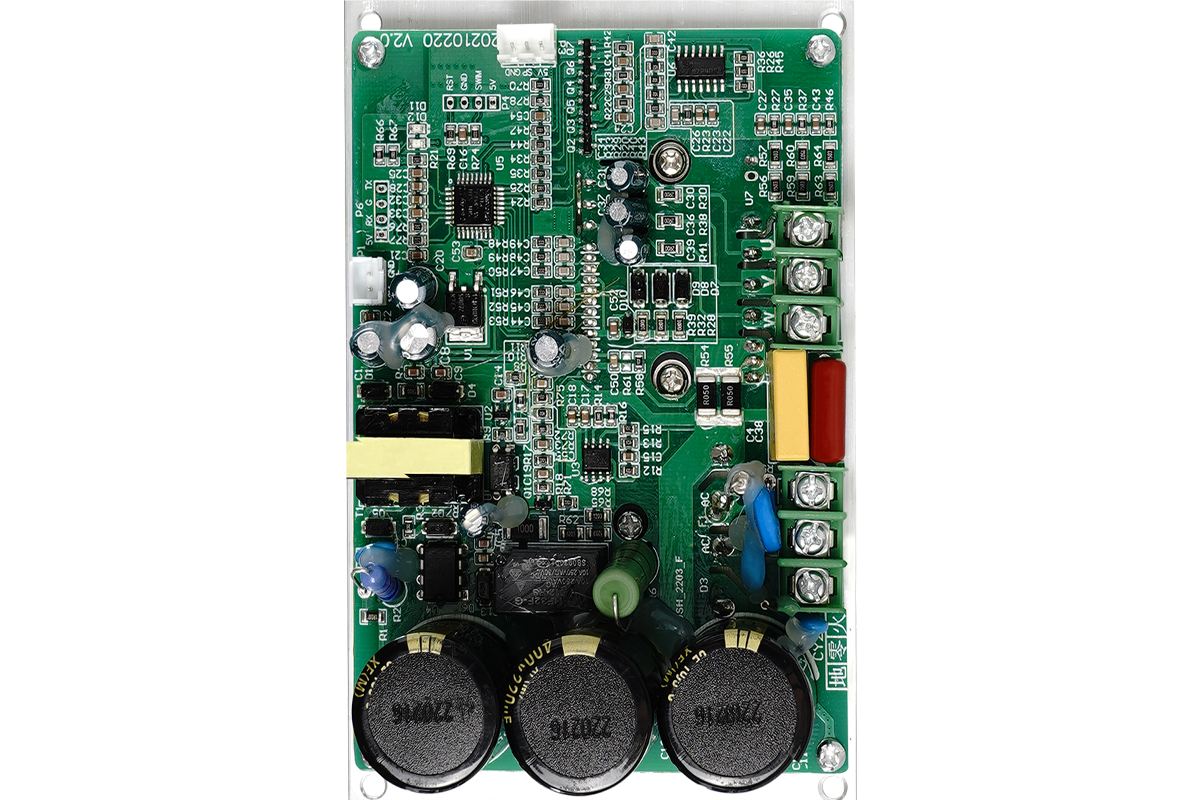

H Series BLDC Motor Driver
for Hand Dryer

Staba hand dryer solutions offer you a plug and play replacement for the traditional AC system. Smaller size but more powerful than AC motor, save energy up t0 60%, 8000+hours lifespan save time and money for maintenance.

FOC technology
8 bits professional MCU for faster calculation
Wide AC input range from 90V to 264V
155Vdc/310Vdc available
Maximum power 1100 watts
IPM intelligent power module invited
CW/CCW optional
Linear speed control
PWM or potentiometer control interface
Fan good/Fan bad signal interface
Power factor correction ready

Solution

01/03

OVERVIEW APPLICATION

H Series BLDC Motor Driver for Hand Dryer

Model	HVD-300
Input Voltage	230Vac
Max RPM	9000
MaX Current (A)	1.31
Rated Power (W)	250
High Temp. Protection	95℃
Low/High Voltage Protection	175 v / 260 v
Starting Voltage	180V
Working Temp.	-20℃~-40℃
Storge Temp.	-20℃~-60℃
Protection	Low/Over voltage, short circuit, Over current

Product Advantages

High DC Bus Voltage 155/310Vdc

110Vac/230Vac rectified to 155Vdc/310Vdc, higher efficiency and better cost control

Potentiometer/PWM Speed Control Interface

Standard speed control interface for easy embedded

No Power Supply Needed

Save quite a big money by direct rectifier, no power supply needed

FG/FB Signal For Motor Status Indication

Better Users' interface design and maintenance
